Govern API Proxies

To govern the API proxies, you can define rulesets/documents, and policies. These concepts help you enforce governance policies on APIs and ensure compliance with security, compliance, performance, and operational guidelines.

To define the governance compliance standards for API proxies, you can either create Spectral rulesets or use the natural language specification to define the rules.

Create a Ruleset

  1. Sign in to the API Platform Console.
  2. In the API Platform Console header, go to the Organization list and select your organization.
  3. In the left navigation menu, click Admin and then click Governance. This opens the Governance page.
  4. From the Rulesets / Documents section, select Rulesets and click Add Rulesets button.
  5. Provide the following details
Field Name Description Mandatory Options/Values
Name The name of the ruleset. Yes -
Description A brief description of the ruleset. No -
Applies To The Proxy component to which the ruleset is applied. Yes -
Artifact Type The type of the API. Yes REST API, Async API
Documentation Link A link to the documentation of the ruleset. No -
Spectral Ruleset Define the ruleset content using the Spectral. You can upload a pre-written ruleset file. Yes -
Provider Name The name of the provider who created the ruleset. Yes -

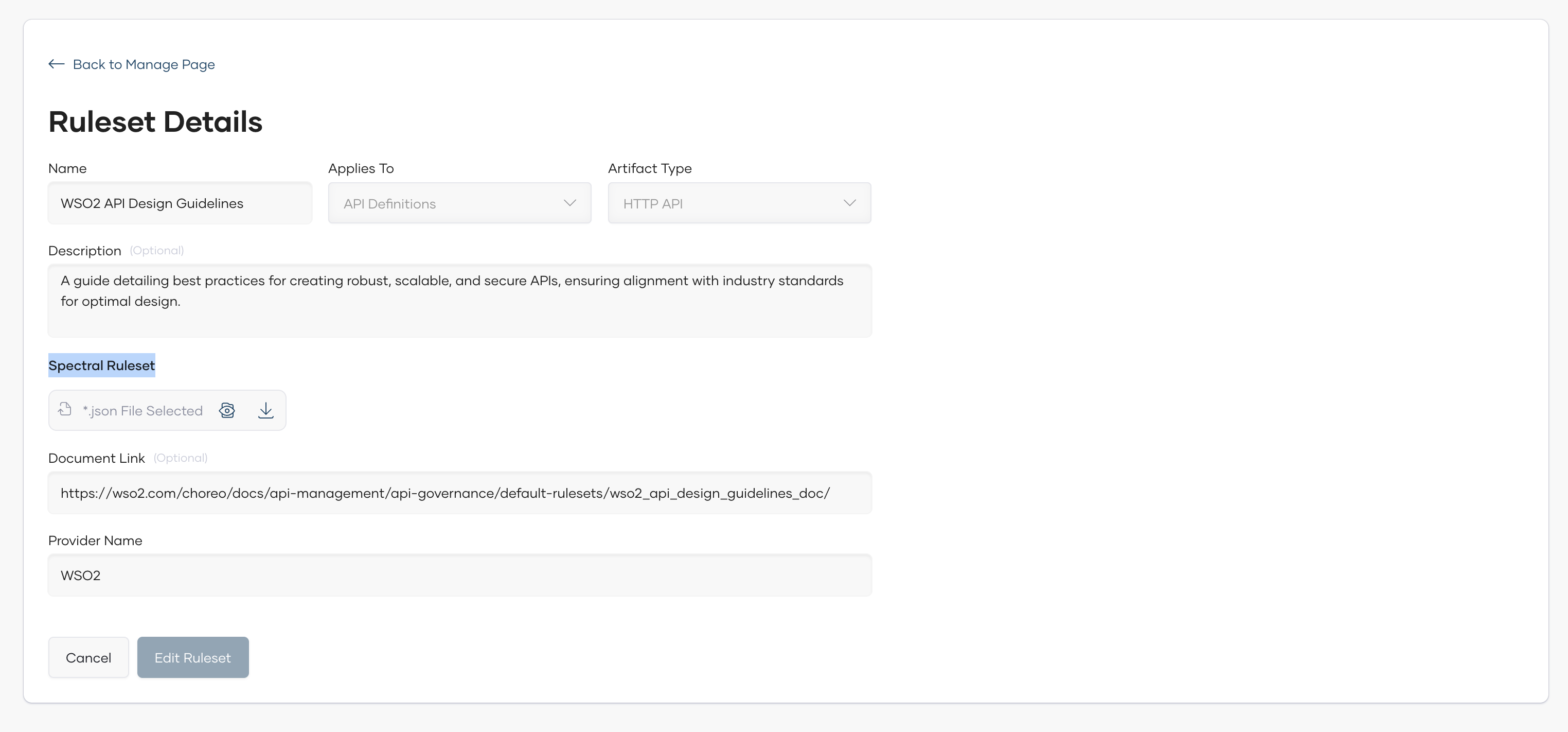

Add Rulesets

Add a Document

  1. From the Rulesets / Documents section, select Documents and click Add Document button.
  2. Provide the following details
Field Name Description Mandatory Options/Values
Name The name of the document. Yes -
Description A brief description of the document. No -
Applies To The Proxy component to which the document is applied. Yes API Definition
Artifact Type The type of the API. Yes HTTP API
Document Select a file for the document. Yes -

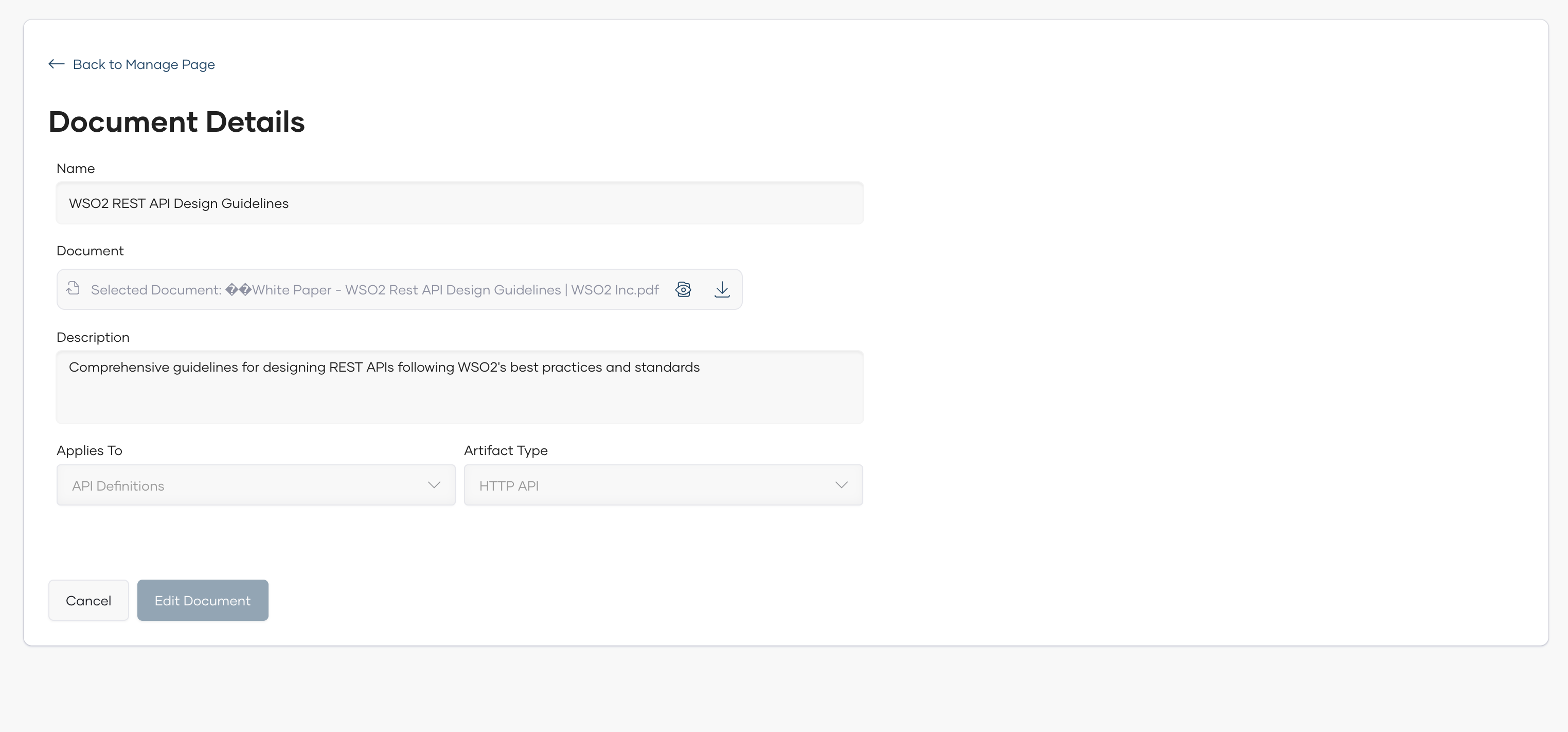

Add Document

Policy

Policy will be used to enforce the rulesets and documents on the API proxies. A policy can only be have either rulesets or documents attached to it. To create a policy, follow the below steps.

  1. From the Policies section, click Add Policy button.
  2. From the pop-up window, Select the source of the rules whether it is Using Rule Definition or Using Document.
  3. Based on the selection, fill in the required fields.
Field Name Description Mandatory Options/Values
Name The name of the policy. Yes -
Description A brief description of the policy. No -
Applicability The level of applicability of the policy. Yes Global/ Specify
Enforcement Detail The detail of the policy enforcement criteria. Yes
Ruleset/Document The rulesets or document that should attached to the policy. Yes -

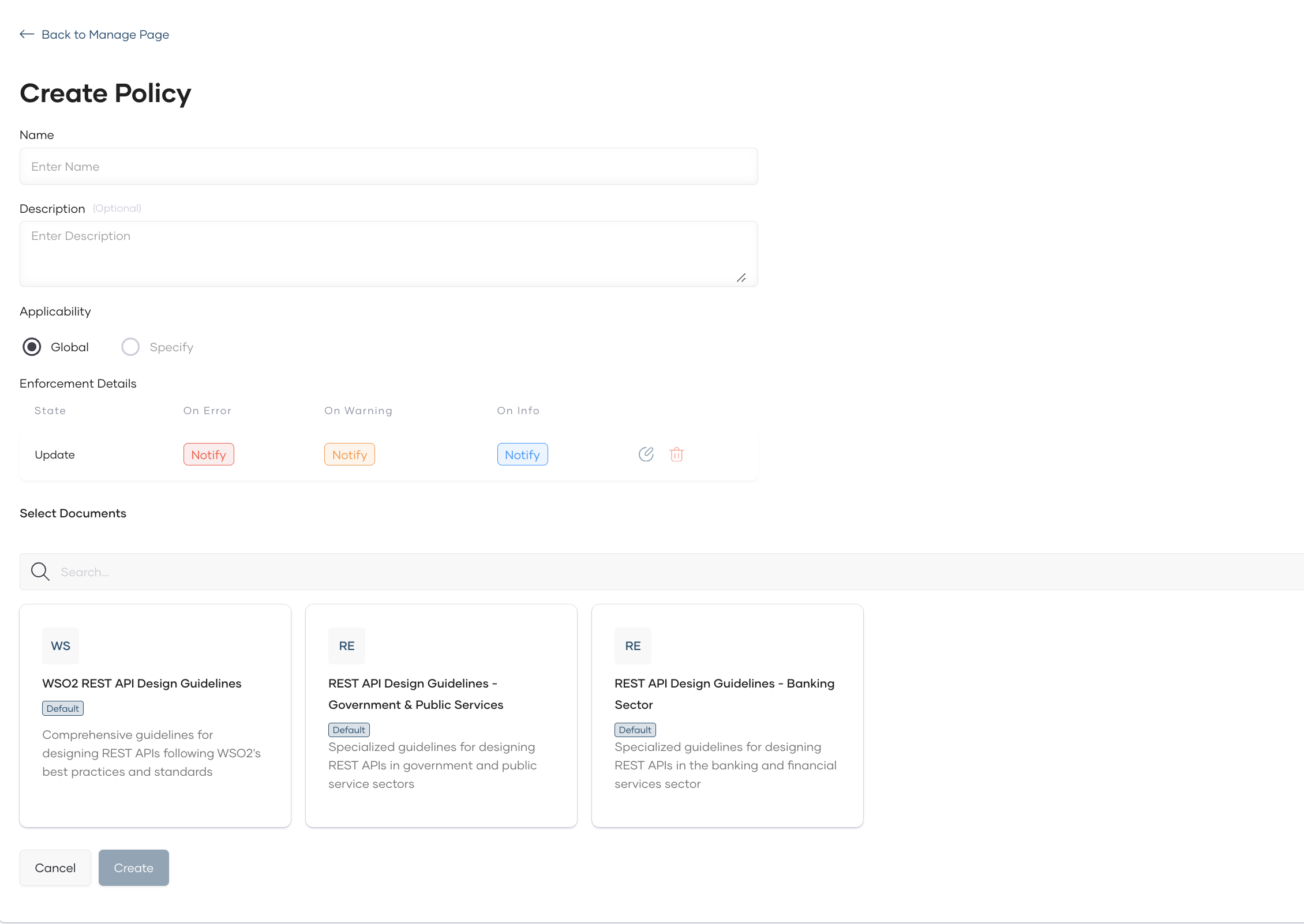

Add Policy

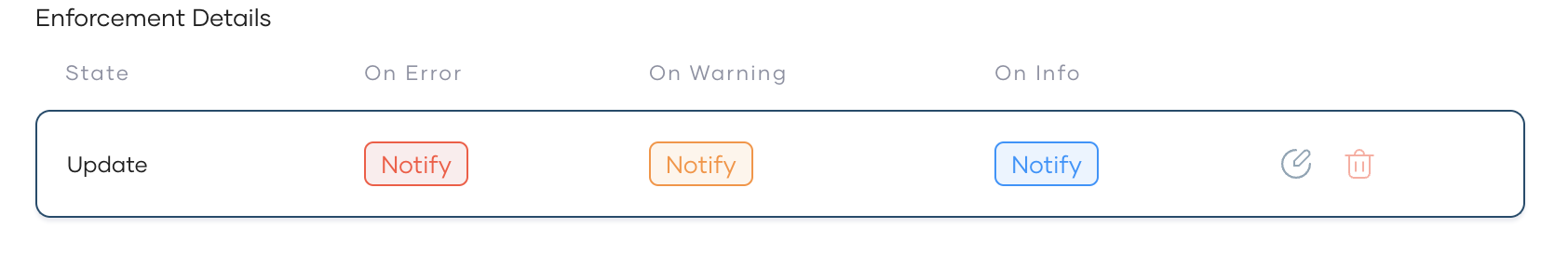

Enforcement Detail

Field Name Description Mandatory Options/Values
Governed State The state of the API to which the policy is applied. (Currently only supports Update) Yes Update
Severity Levels The severity level of the policy violation. Yes Error, Warn, Info
Actions The action to be taken when a policy violation is detected. (Currently only supports Notify) Yes Notify

Enforcement Detail

By adding the policy, all the existing and newly created API proxies will be validated against the defined rulesets and documents.
