Setting up an AI Gateway

AI Gateways are the runtime components that process and route requests between your applications and LLM providers. You can create and manage AI gateways directly within the AI Workspace to deploy your LLM providers and proxies.

Prerequisites

  • Access to API Platform Console with Admin role

View AI Gateways

  1. Navigate to AI Gateways in the left navigation menu.

The AI Gateways page displays a list of all configured gateways with the following details:

Column Description
Name The gateway name
Description A brief description of the gateway
Status Current status (Active or Not Active)
Last Updated Timestamp of the most recent change
Actions Edit and delete options

Add a New AI Gateway

  1. Navigate to AI Gateways in the left navigation menu.

  2. Click + Add AI Gateway.

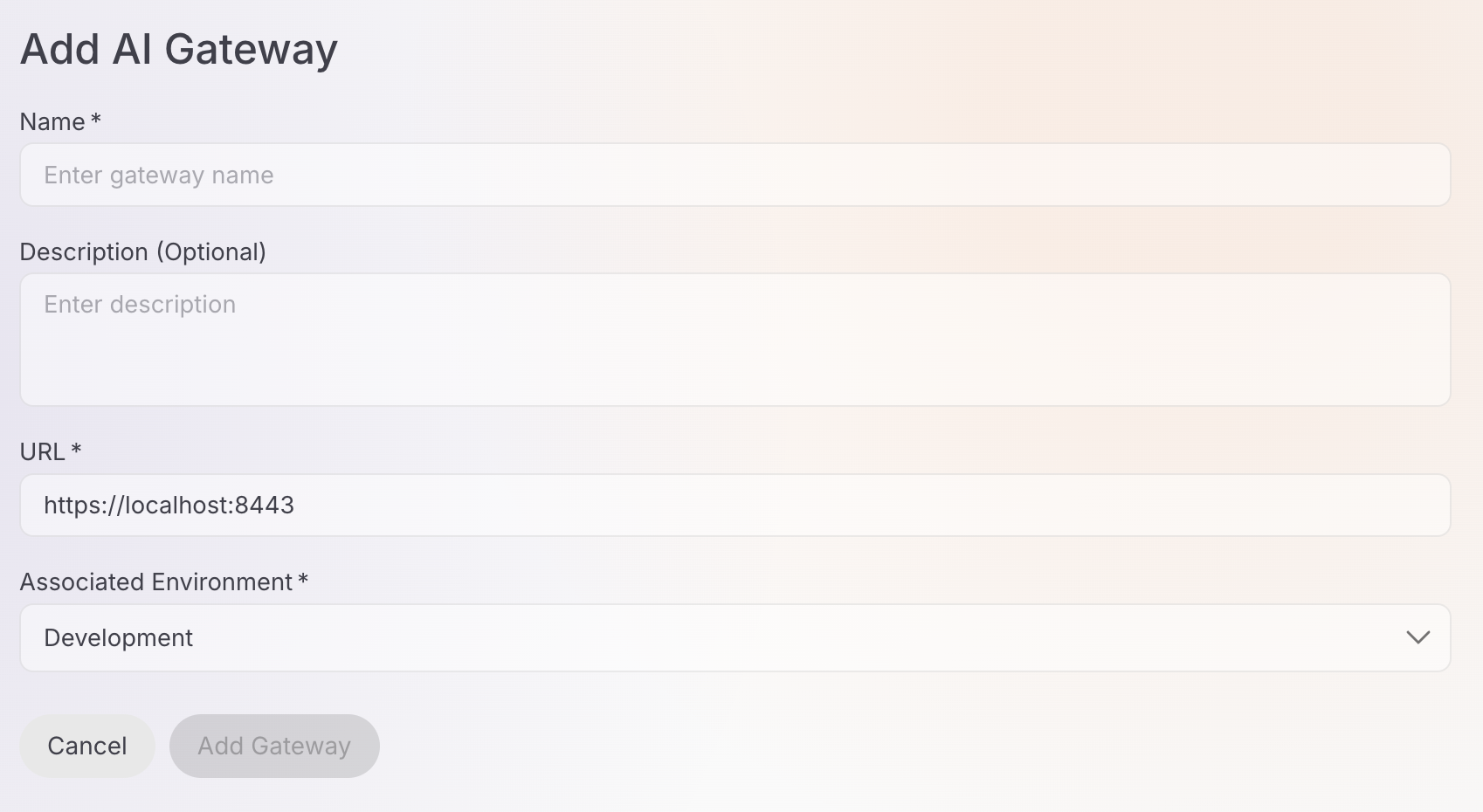

  3. Fill in the gateway details:

    1. Name* (Required): Enter a unique name for the gateway (e.g., production-gateway, dev-gateway).

    2. Description (Optional): Add a brief description to identify the gateway's purpose.

    3. URL* (Required): Enter the gateway URL (e.g., https://localhost:8443). This is the endpoint where the gateway runtime is accessible.

    4. Associated Environment* (Required): Select the environment from the dropdown (e.g., Development, Production).

    Select LLM Provider

  4. Click Add Gateway to create the gateway.

  5. After creation, the gateway detail page opens showing the gateway name, status (Inactive initially), vhost, and creation timestamp.

Set Up the Gateway

After creating an AI gateway, you need to set up the gateway runtime. The detail page provides a Get Started section with setup instructions.

Gateway Registration Token

A Gateway Registration Token is displayed at the top of the Get Started section. This token is required to connect your gateway runtime to the control plane.

Important

This token is shown only once. Ensure it is securely saved before leaving this page.

Lost your token?

The registration token is single-use. If you need to reconfigure the gateway, click the Reconfigure button to generate a new token. This will revoke the old token and disconnect the gateway from the control plane.

Installation Methods

The Get Started section provides setup instructions for multiple deployment options:

Prerequisites:

  • cURL installed
  • unzip installed
  • Docker installed and running

Step 1: Download the Gateway

Run this command in your terminal to download the gateway:

curl -sLO https://github.com/wso2/api-platform/releases/download/ai-gateway/v0.8.4/ai-gateway-v0.8.4.zip && \
unzip ai-gateway-v0.8.4.zip

Step 2: Configure the Gateway

Run this command to create the environment configuration file with the required environment variables:

cat > ai-gateway-v0.8.4/configs/keys.env << 'ENVFILE'
GATEWAY_CONTROLPLANE_HOST=platform-api.preview-dv.choreo.dev
GATEWAY_REGISTRATION_TOKEN=<your-gateway-token>
ENVFILE

Replace <your-gateway-token> with the token from the Get Started section.

Step 3: Start the Gateway

  1. Navigate to the gateway folder:

    cd ai-gateway-v0.8.4

  2. Run this command to start the gateway using the environment file created in Step 2:

    docker compose --env-file configs/keys.env up

Prerequisites:

  • cURL installed
  • unzip installed
  • A Docker-compatible container runtime such as:
    • Docker Desktop (Windows / macOS)
    • Rancher Desktop (Windows / macOS)
    • Colima (macOS)
    • Docker Engine + Compose plugin (Linux)

Ensure docker and docker compose commands are available:

docker --version
docker compose version

Step 1: Download the Gateway

Run this command in your terminal to download the gateway:

curl -sLO https://github.com/wso2/api-platform/releases/download/ai-gateway/v0.8.4/ai-gateway-v0.8.4.zip && \
unzip ai-gateway-v0.8.4.zip

Step 2: Configure the Gateway

The registration token is single-use. If you need to reconfigure the gateway, click Reconfigure to generate a new token — this will revoke the old token and disconnect the gateway from the control plane.

Step 3: Start the Gateway

  1. Navigate to the gateway folder:

    cd ai-gateway-v0.8.4

  2. Run this command to start the gateway using the environment file created in Step 2:

    docker compose --env-file configs/keys.env up

Prerequisites:

  • cURL installed
  • unzip installed

Step 1: Download the Gateway

Run this command in your terminal to download the gateway:

curl -sLO https://github.com/wso2/api-platform/releases/download/ai-gateway/v0.8.4/ai-gateway-v0.8.4.zip && \
unzip ai-gateway-v0.8.4.zip

Step 2: Configure the Gateway

The registration token is single-use. If you need to reconfigure the gateway, click Reconfigure to generate a new token — this will revoke the old token and disconnect the gateway from the control plane.

Step 3: Start the Gateway

  1. Navigate to the gateway folder:

    cd ai-gateway-v0.8.4

  2. Run this command to start the gateway using the environment file created in Step 2:

    docker compose --env-file configs/keys.env up

Prerequisites:

  • cURL installed
  • unzip installed
  • Kubernetes 1.32+
  • Helm 3.18+

The registration token is a one-time generated token for this gateway. If you need to install or update the gateway chart again, first reconfigure this gateway to generate a new registration token. Reconfiguring will revoke the previous token.

Installing the Chart

Run this command to install the gateway chart with control plane configurations:

helm install gateway oci://ghcr.io/wso2/api-platform/helm-charts/gateway --version 0.8.4 \
--set gateway.controller.controlPlane.host="host.docker.internal" \
--set gateway.controller.controlPlane.port=8443 \
--set gateway.controller.controlPlane.token.value="your-gateway-token"

Replace your-gateway-token with the token from the Get Started section.

Once the gateway runtime is running and connected, the gateway status will change from Inactive to Active.

Manage AI Gateways

Edit a Gateway

  1. In the AI Gateways list, click the edit icon next to the gateway you want to modify.

  2. Update the gateway details as needed.

  3. Click Save to apply the changes.

Delete a Gateway

  1. In the AI Gateways list, click the delete icon (trash icon) next to the gateway you want to remove.

  2. Confirm the deletion when prompted.

Irreversible Action

Deleting a gateway is permanent. All providers and proxies deployed to this gateway will be undeployed immediately.
